TECHNICAL DATA£º
|
Maximum momentum |
220KN ¡¡270KN ¡¡270KN ¡¡270KN |
|
Worktable area |
900¡Á430mm¡¡1000¡Á500mm¡¡1000¡Á500mm¡¡1000¡Á500mm |
|
Rocker width |
370mm¡¡370mm¡¡500mm¡¡610mm |
| Cutting travel |
90mm¡¡90mm¡¡90mm¡¡90mm |
| Power |
0.75Kw¡¡1.1Kw¡¡1.1Kw ¡¡1.1Kw |
| Dimension |
900¡Á820¡Á1400mm¡¡1000¡Á1020¡Á1410mm¡¡ 1000¡Á1020¡Á1410mm¡¡1000¡Á1020¡Á1410mm¡¡ |
| Packing dimensions |
1050¡Á1000¡Á1500mm¡¡1150¡Á1200¡Á1500mm 1150¡Á1200¡Á1500mm¡¡1150¡Á1200¡Á1500mm¡¡¡¡ |
| N-W | 650Kg¡¡960Kg¡¡1050Kg¡¡1200Kg |
| Gross weight | 740Kg¡¡1120Kg¡¡1210Kg¡¡1360Kg |

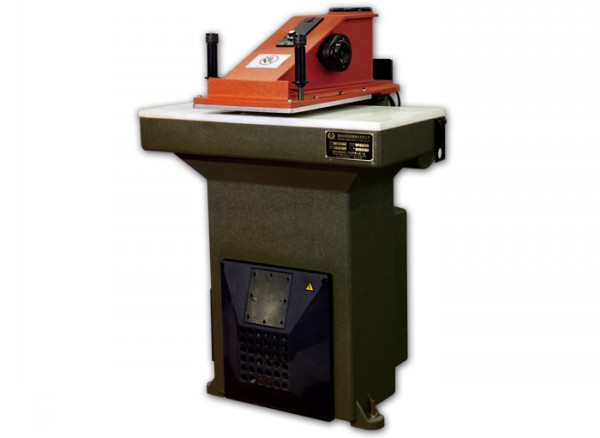

Application£ºIt is suitable for cutting operation of various nonmetal materials by forming die cutter.
The specially designed oil way system can conveniently adjust the rocker height. No adjustment is needed after the height of die cutteris changed.
High speed and low energy consumption. With only power of 0.75KW, it can output the cutting force of 22T.
In order to meet the need for frequent replacement of die cutte rs of diffe rent sizes, another type of machine that can timely output three kinds of cutting fo rces is available for selection.
